Cutaway technical illustration of an industrial reciprocating compressor.
![](https://cdn.myportfolio.com/e48907d1-bf9c-4fbc-be11-1e00616919f7/9ff453c6-0612-47c4-a1e2-ac3d6d58b640_rw_1920.jpg?h=81d26187f30fbae3317526de4cc866d4)

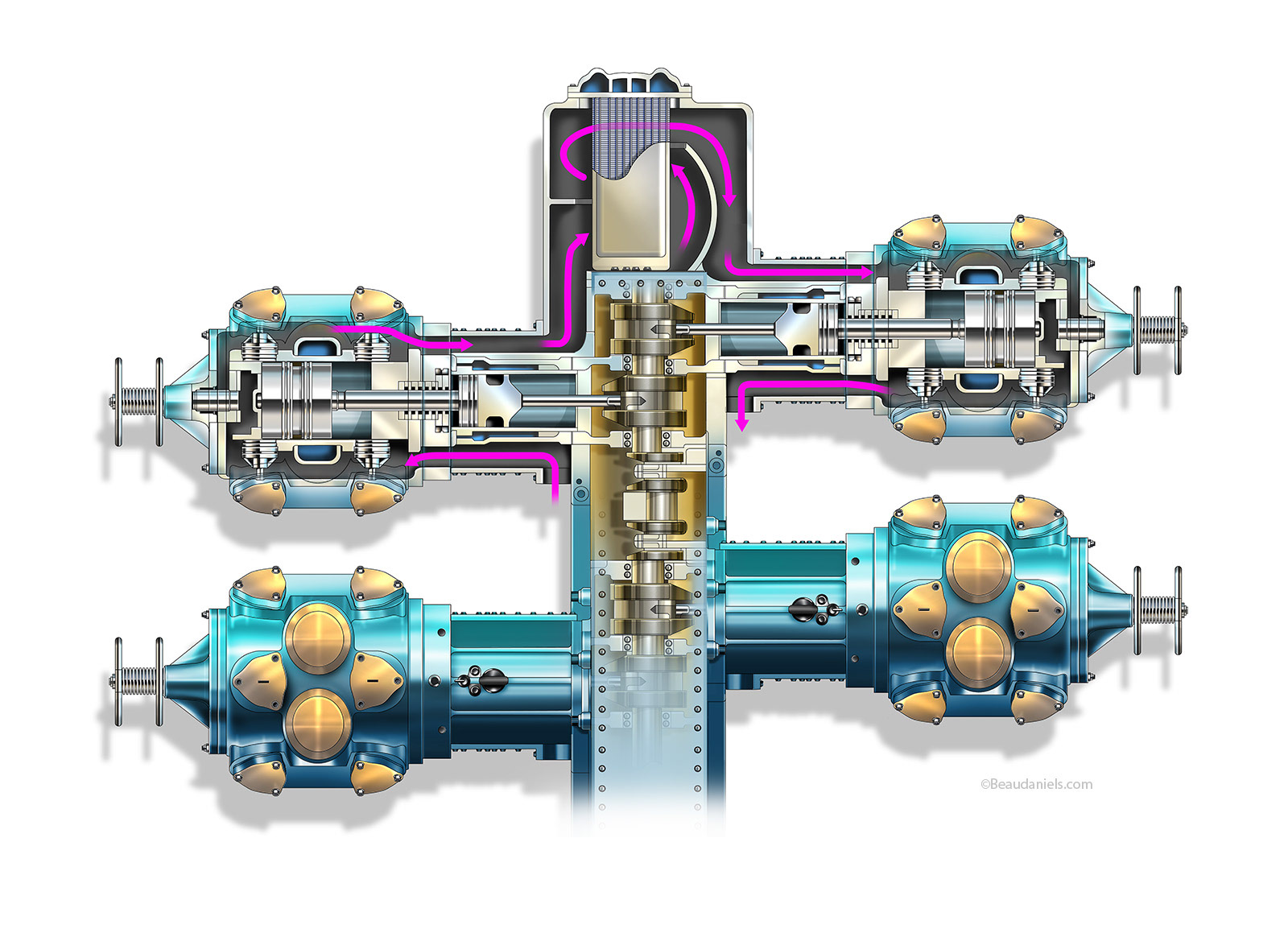

Industrial reciprocating compressor, cutaway technical illustration for Exxon/Mobil.
![](https://cdn.myportfolio.com/e48907d1-bf9c-4fbc-be11-1e00616919f7/26e503dc-6bd1-4d9e-b01b-940d2579e8ae_rw_1920.jpg?h=d070754b1b906c3d4fc57ebbe399f5c1)

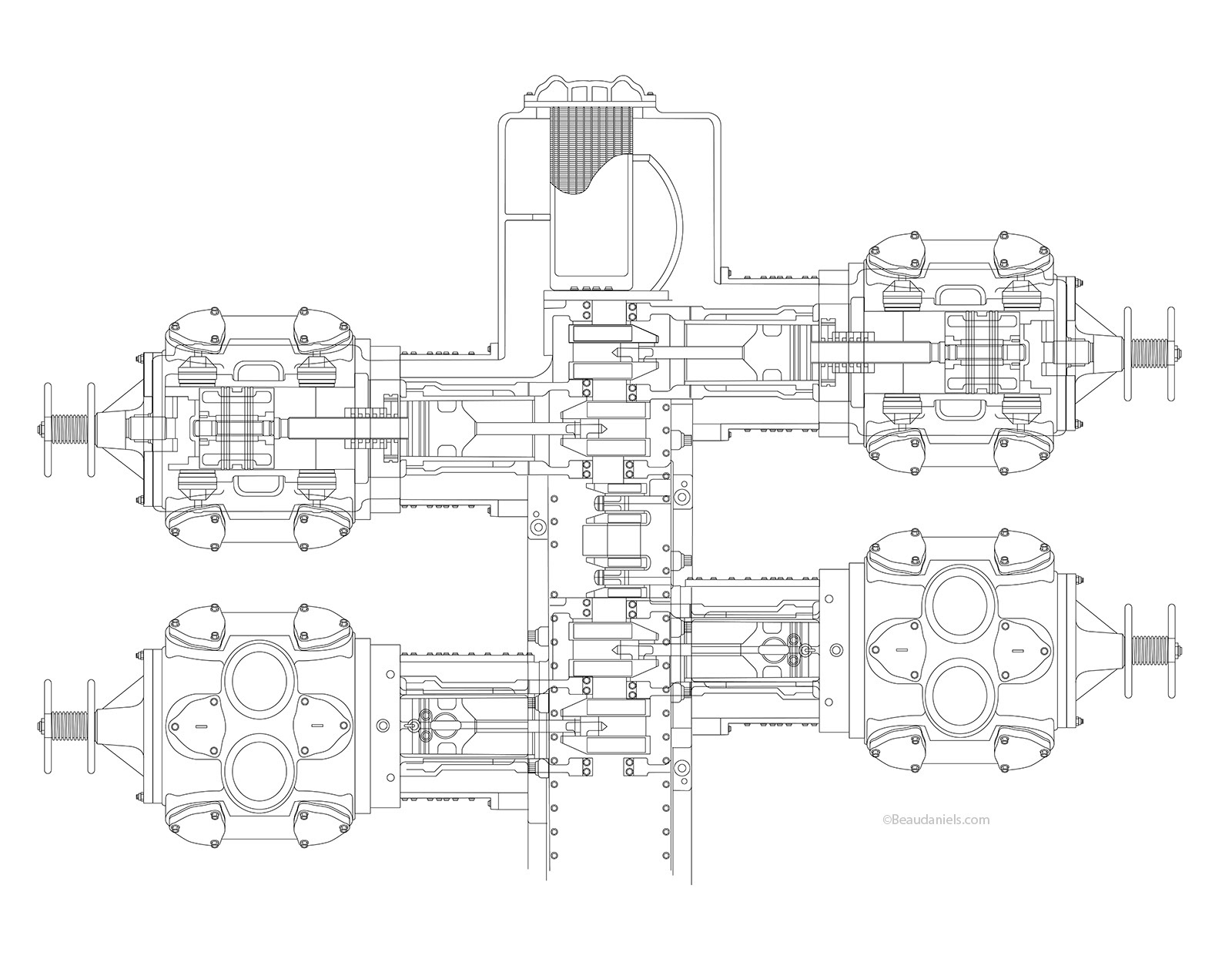

Line art for the illustrations.
![](https://cdn.myportfolio.com/e48907d1-bf9c-4fbc-be11-1e00616919f7/976ae29a-7905-4caf-a510-70572e6292a8_rw_1920.jpg?h=a7c0a605bab77ab68fdf4b6856d44565)

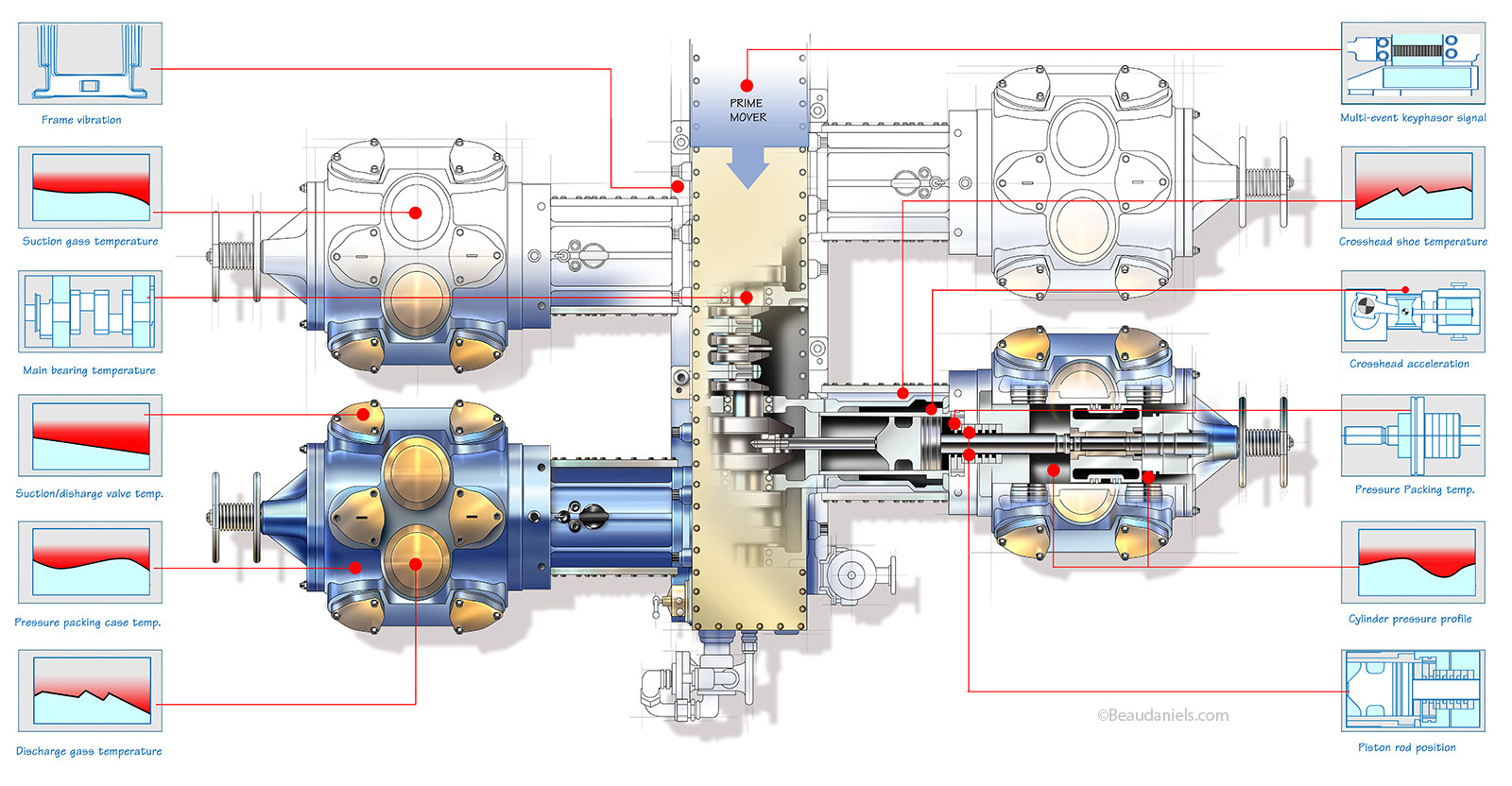

Stress analysis in an industrial reciprocating compressor. Pulsation & Mechanical Analysis: Reciprocating Compressor
