Cutaway technical illustration, comparing Jet Boil stoves.
![](https://cdn.myportfolio.com/e48907d1-bf9c-4fbc-be11-1e00616919f7/7447da38-3005-426a-8b96-c5ba9f13a287_rw_1200.jpg?h=6ebf20c4d99af2fd09e5650319178a41)
Object was to create a cutaway technical illustration to help show how these stoves can operate in extreme high wind conditions.
![](https://cdn.myportfolio.com/e48907d1-bf9c-4fbc-be11-1e00616919f7/0786a9e1-59a0-4fe2-9ad2-6bbdd1513cfe_rw_1200.jpg?h=4638c803af7af40d79f0e738f37917d8)

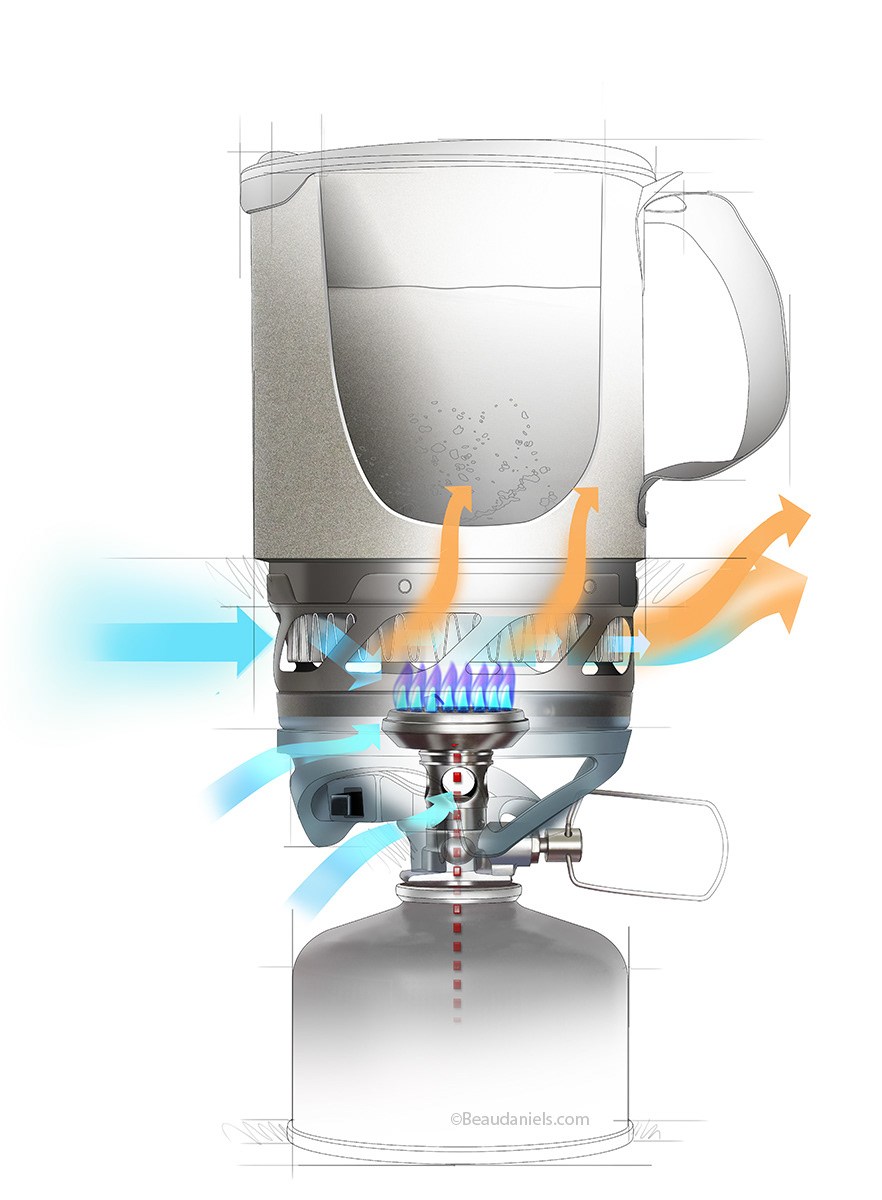

A variation of the first stove but a similar set of parameters to illustrate. This time the stove is visibly not as efficient.
