Cutaway technical illustration,
Royal Caribbean Cruise Line, Monarch of the Seas.
![](https://cdn.myportfolio.com/e48907d1-bf9c-4fbc-be11-1e00616919f7/55ed3a16-1c84-4a13-a35e-2c62306b5898_rw_1920.jpg?h=ee859e9d68d69cae3bf5a2f067a39b41)
Monarch of the Seas, final illustration as used for posters, web, collateral.
![](https://cdn.myportfolio.com/e48907d1-bf9c-4fbc-be11-1e00616919f7/e05ddb83-0962-4a73-b65b-d2cfabfd9d52_rw_1920.jpg?h=29d78b38d5c60ceb13a9debf845088b8)

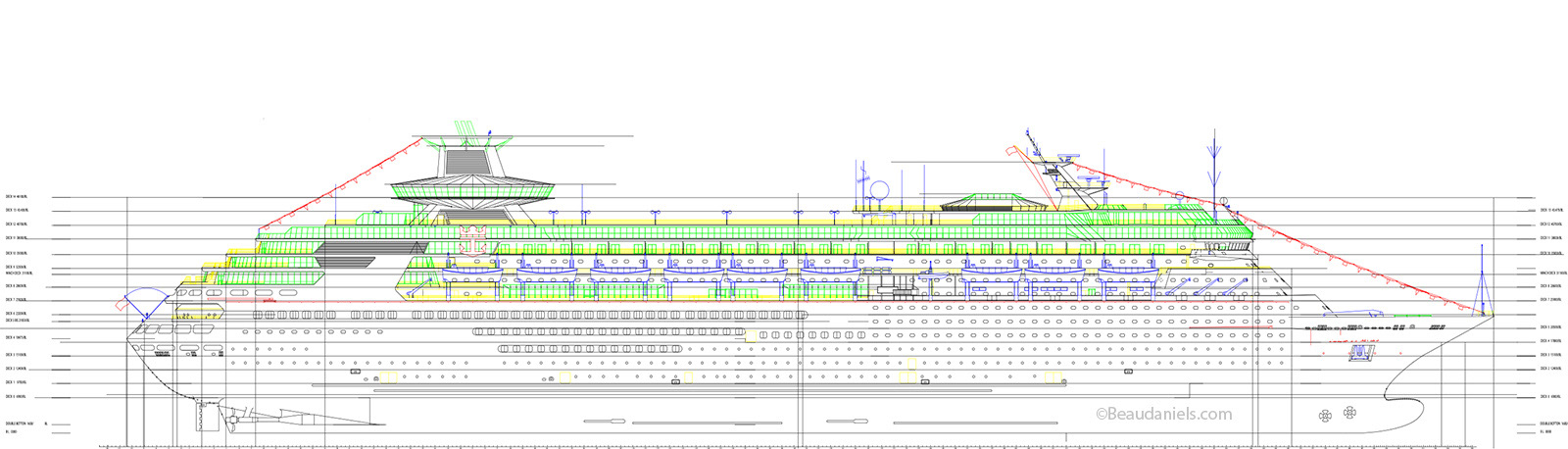

Monarch of the Seas, profile illustration with all decks and dimensions.
![](https://cdn.myportfolio.com/e48907d1-bf9c-4fbc-be11-1e00616919f7/a283487f-21f0-4a04-acad-f72452e94a74_rw_1920.jpg?h=0372ca178e4b97a42d65b38f76432d91)

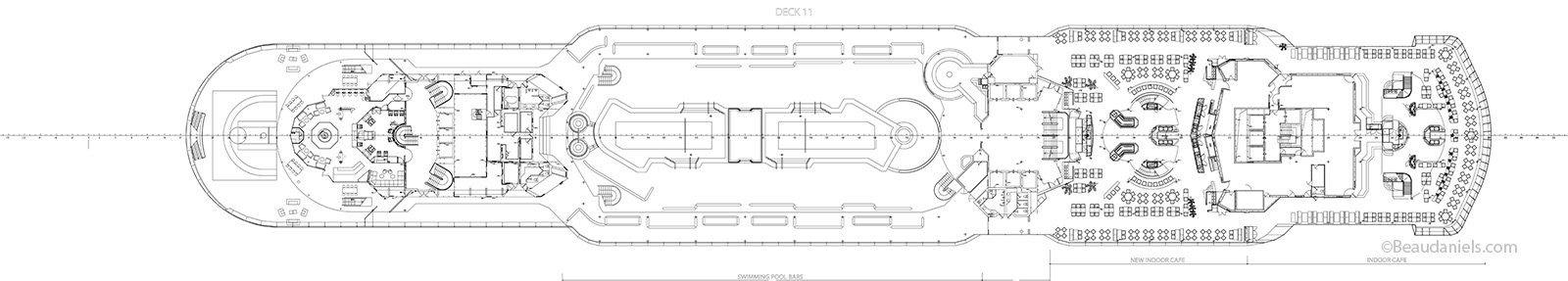

Each individual deck of the Cruise ship is drawn in illustrator.
![](https://cdn.myportfolio.com/e48907d1-bf9c-4fbc-be11-1e00616919f7/eeb78da8-c423-4441-88d0-b828c89af20f_rw_1920.jpg?h=ec1b69e0996e56461823350739f062f2)
Important information is separated by color.
![](https://cdn.myportfolio.com/e48907d1-bf9c-4fbc-be11-1e00616919f7/2d255e5c-f238-4336-9d7f-d1fe2cbe4313_rw_1920.jpg?h=5ee38e72a82055aaa8e71ea18e2aca43)

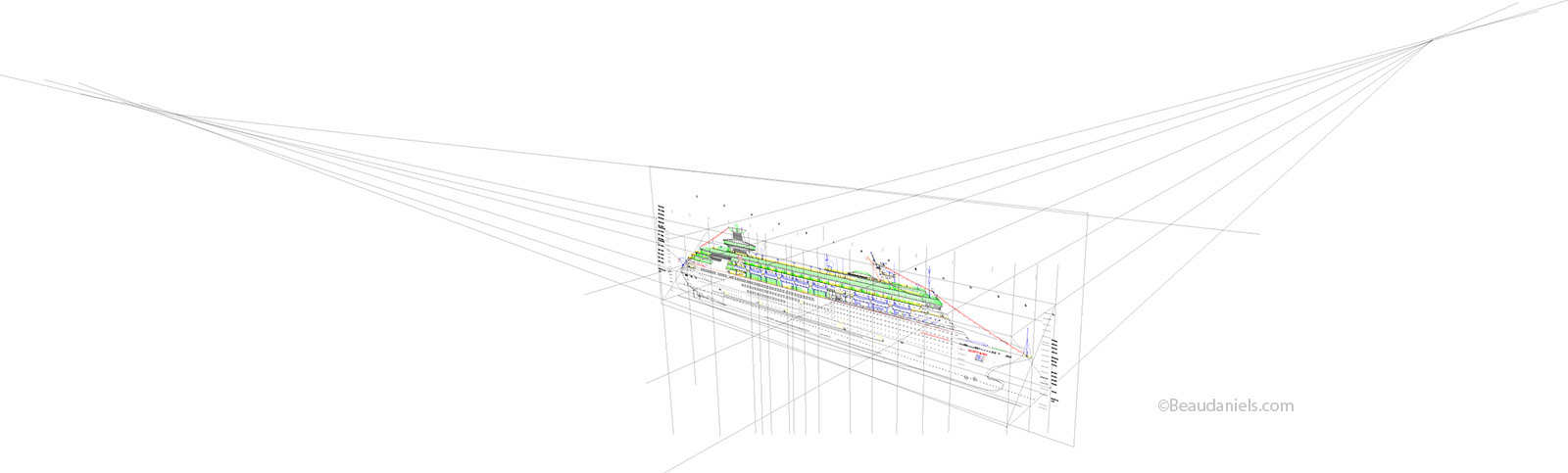

The profile illustration is dropped into perspective in illustrator.
![](https://cdn.myportfolio.com/e48907d1-bf9c-4fbc-be11-1e00616919f7/c9f136ea-04f5-4c85-bd1a-613c7b6a8afd_rw_1920.jpg?h=0a2486d9db9c0d2b2bc16a155fdc61e7)

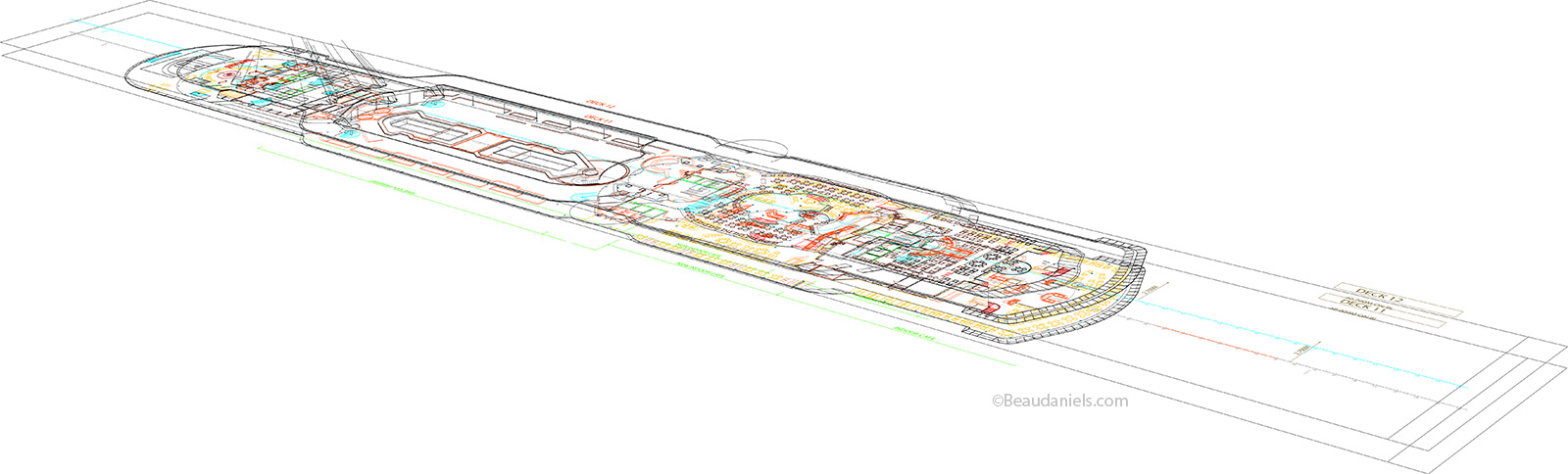

The decks are then stacked on top of each other.
![](https://cdn.myportfolio.com/e48907d1-bf9c-4fbc-be11-1e00616919f7/094f1005-26bc-46a8-97ae-f283b2cbf688_rw_1920.jpg?h=6c75e590cbd0c2677cee1d56484a8cd2)

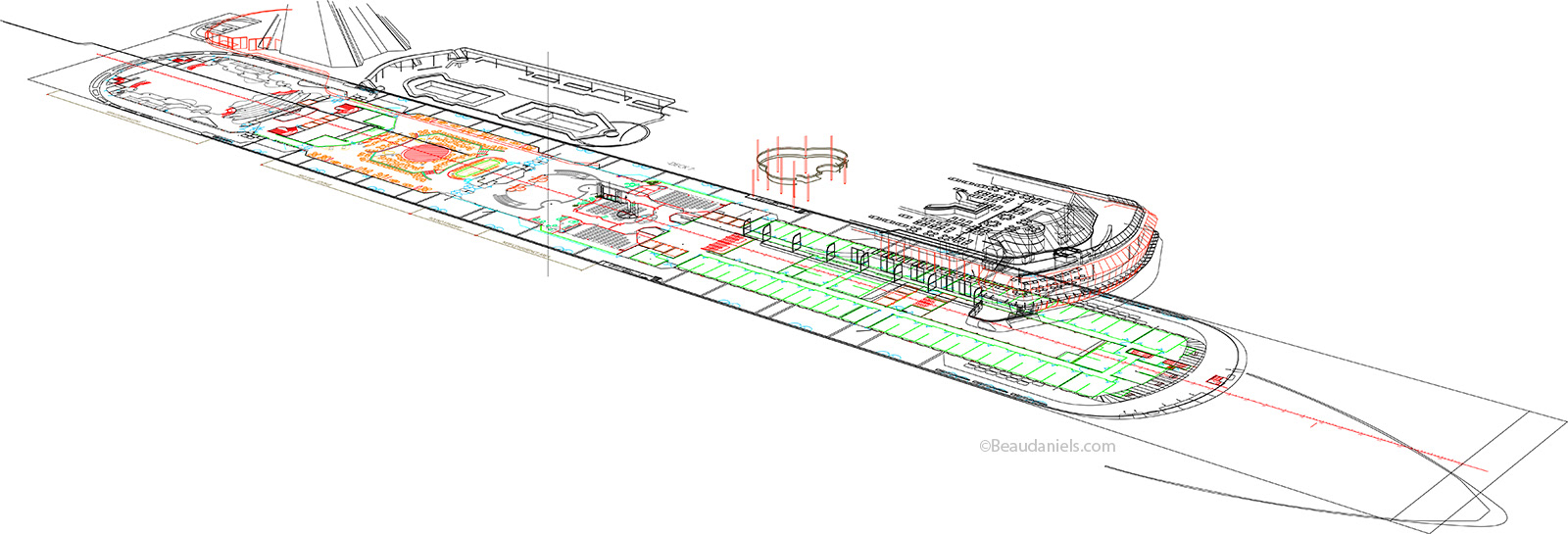

Dimension between the decks can now be drawn.
![](https://cdn.myportfolio.com/e48907d1-bf9c-4fbc-be11-1e00616919f7/cb7006f1-3078-464b-80bd-e6327ec620d7_rw_1920.jpg?h=064aa885aec45670e576827f007ce698)

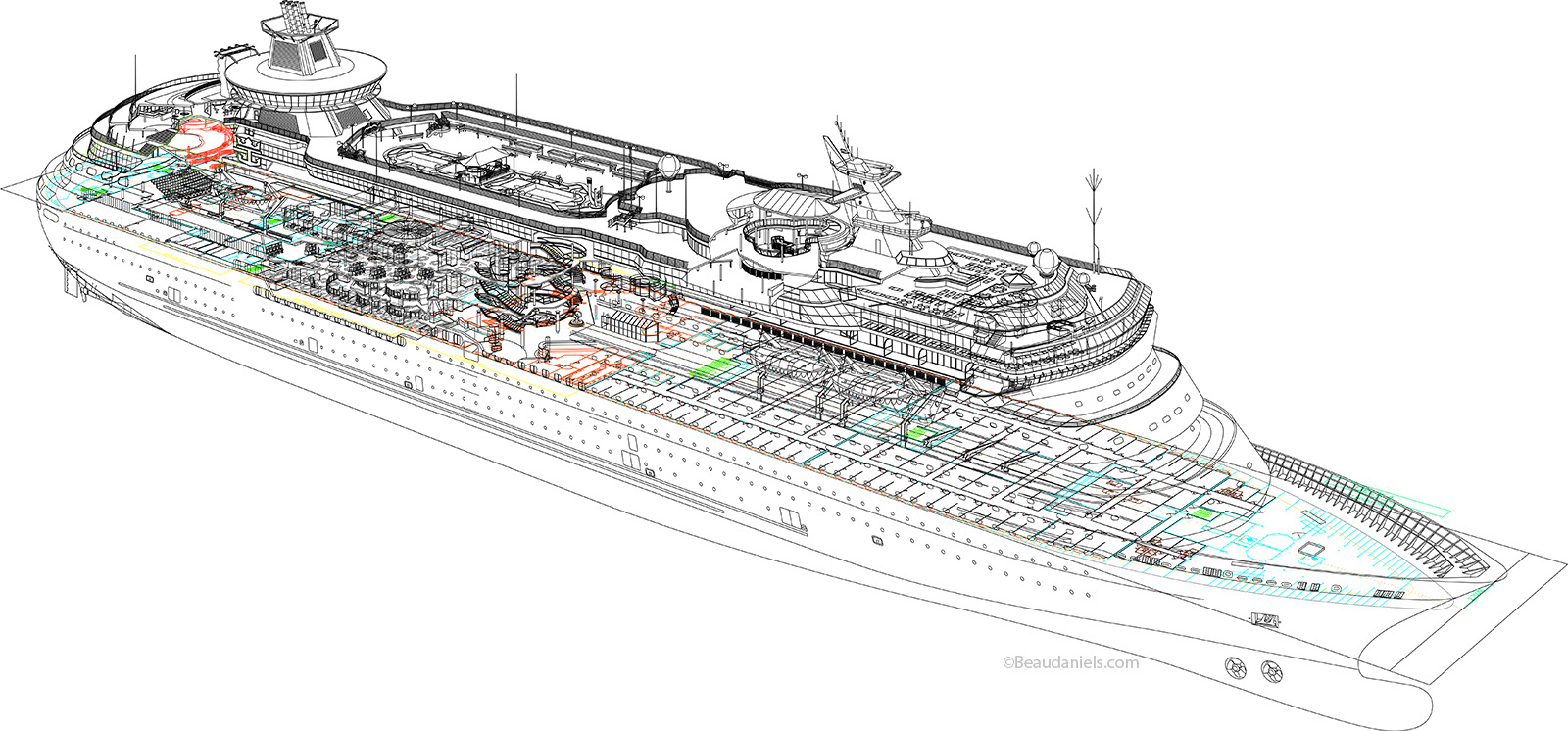

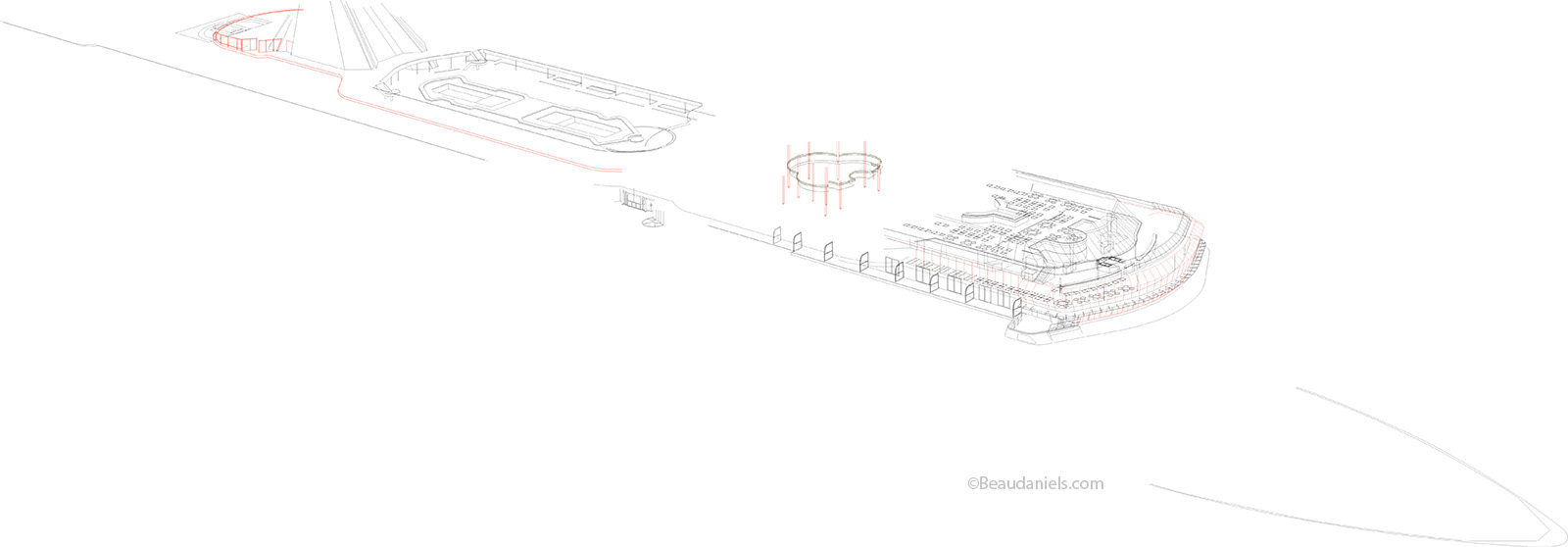

In this illustration the deck guides are switched off so that you can start to see what you are drawing.
![](https://cdn.myportfolio.com/e48907d1-bf9c-4fbc-be11-1e00616919f7/47caa7fb-ffe1-49e6-9286-d4009406c8eb_rw_1920.jpg?h=c960a979dffbf843cbc71d974e4ee2c3)
This version of the drawing contains cabin reference, this was later reduced to just showing the sections of three cabins.
![](https://cdn.myportfolio.com/e48907d1-bf9c-4fbc-be11-1e00616919f7/1e000510-a77d-43d1-9f39-8863f2be969e_rw_1920.jpg?h=383c7420e1ca055c9b364e2f8f3de819)

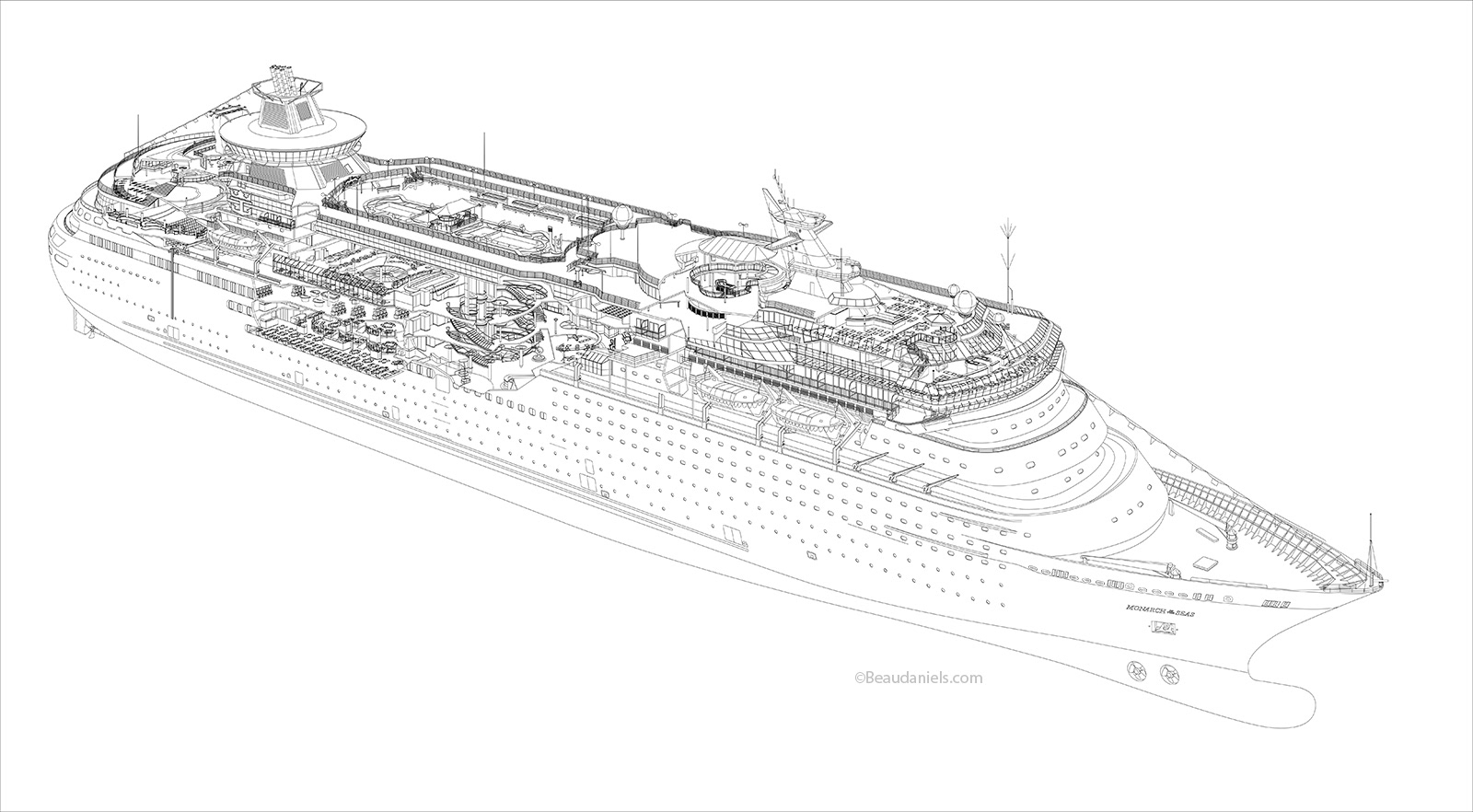

The final illustration line art, without all the guides and reference.
![](https://cdn.myportfolio.com/e48907d1-bf9c-4fbc-be11-1e00616919f7/11bf13d2-479e-4a93-836a-0a2117328b9d_rw_1920.jpg?h=c8119cef2b5d97b531afd8434eafe2d6)
Well we had to start someplace so we chose the pool deck.
![](https://cdn.myportfolio.com/e48907d1-bf9c-4fbc-be11-1e00616919f7/3a27a011-105b-4433-baa2-1a8c2ccb9b25_rw_1920.jpg?h=bf408830bb49e2a30b3ffe7dab60819a)
Monarch of the Seas, Pool deck close up
![](https://cdn.myportfolio.com/e48907d1-bf9c-4fbc-be11-1e00616919f7/9cb96ed1-97e8-42e3-9adf-d1778cfd0dd0_rw_1920.jpg?h=7862fc6236fc063722b5beeb07f57131)
The Centrum of Monarch of the Seas
![](https://cdn.myportfolio.com/e48907d1-bf9c-4fbc-be11-1e00616919f7/bb5485b8-2942-4418-88b7-1b1372e59473_rw_1920.jpg?h=5edaf963e8a783142f178eb9c93ca8ed)
Monarch of the Seas, dining rooms
![](https://cdn.myportfolio.com/e48907d1-bf9c-4fbc-be11-1e00616919f7/e2b7a9d9-324f-468c-b65b-8dc68c0b4fa3_rw_1920.jpg?h=d77528456260471361ca7c717b5a9427)

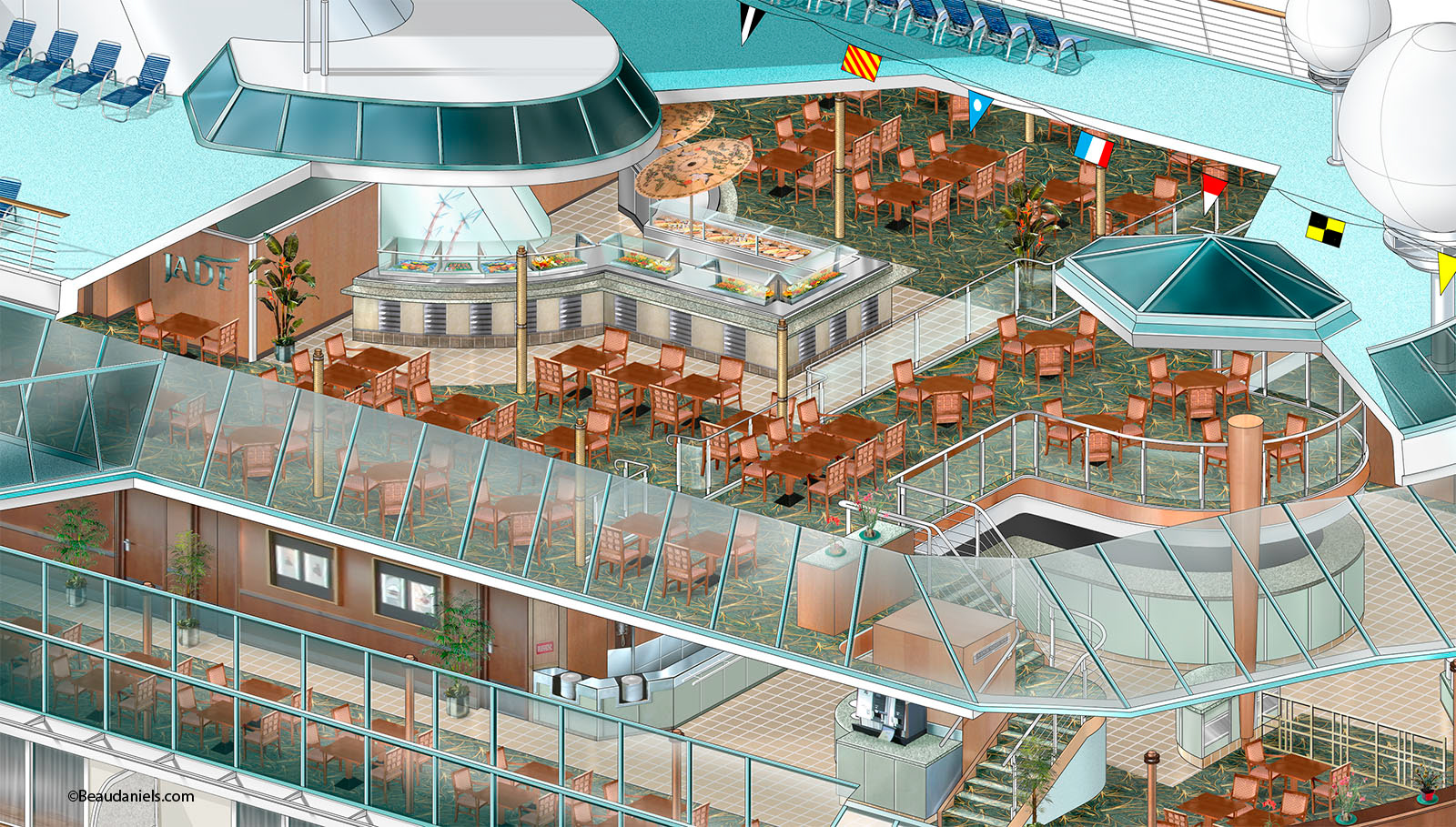

Monarch of the Seas, Windjammer restaurant.
![](https://cdn.myportfolio.com/e48907d1-bf9c-4fbc-be11-1e00616919f7/a309b9f9-799c-400d-b8f6-8a222dd76a5f_rw_1920.jpg?h=74aaa8c9403e39c91e949534697e6c4c)
Monarch of the Seas, Entrances to Boleros, the Casino and a dining room.
![](https://cdn.myportfolio.com/e48907d1-bf9c-4fbc-be11-1e00616919f7/6b0d8f4f-c438-4d4d-ae9d-68aa272df210_rw_1200.jpg?h=257f6d0583a5d1a89e9dfaff506a844c)

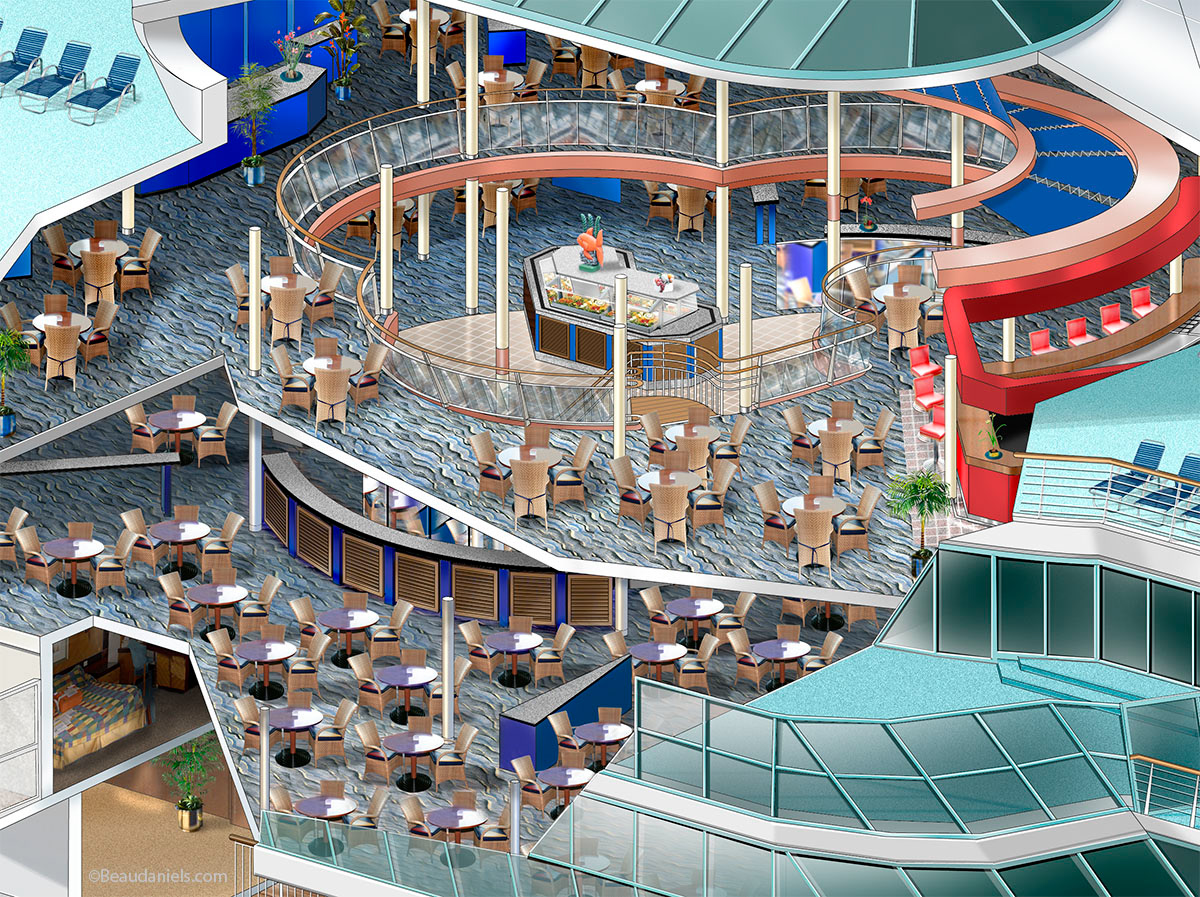

Monarch of the Seas, Calypso restaurant and Bar.
![](https://cdn.myportfolio.com/e48907d1-bf9c-4fbc-be11-1e00616919f7/39692ca3-07d3-49e8-a556-524b9231cf04_rw_1920.jpg?h=e2e101d4fb3c55125348d7776f2c161c)
Monarch of the Seas, Boleros dance floor.
![](https://cdn.myportfolio.com/e48907d1-bf9c-4fbc-be11-1e00616919f7/073da54b-36fe-4586-b33a-fb94f514dee5_rw_1920.jpg?h=8e434b0573a3f3a18abb6ec6846ad5e8)
Monarch of the Seas, dining rooms.
![](https://cdn.myportfolio.com/e48907d1-bf9c-4fbc-be11-1e00616919f7/16c43362-808a-4fad-87fd-5c76edeb9882_rw_1920.jpg?h=ae80869d636b4e4ca9ae6735f6b976d6)

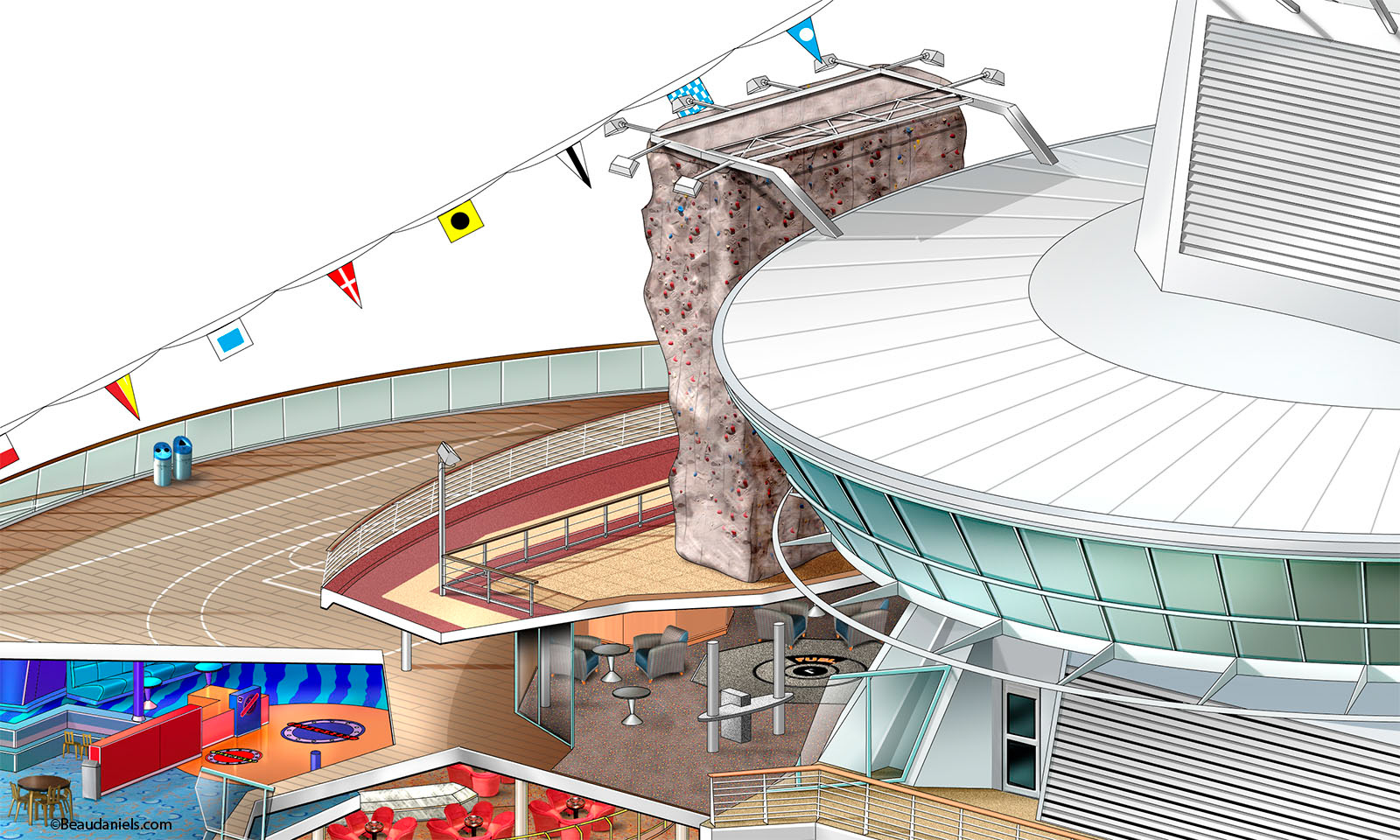

Monarch of the Seas, Rock wall and sports court.
![](https://cdn.myportfolio.com/e48907d1-bf9c-4fbc-be11-1e00616919f7/56152845-c0e4-4e8b-a3e1-b53d26178314_rw_1920.jpg?h=d5146b190222002c6226008c608a074d)

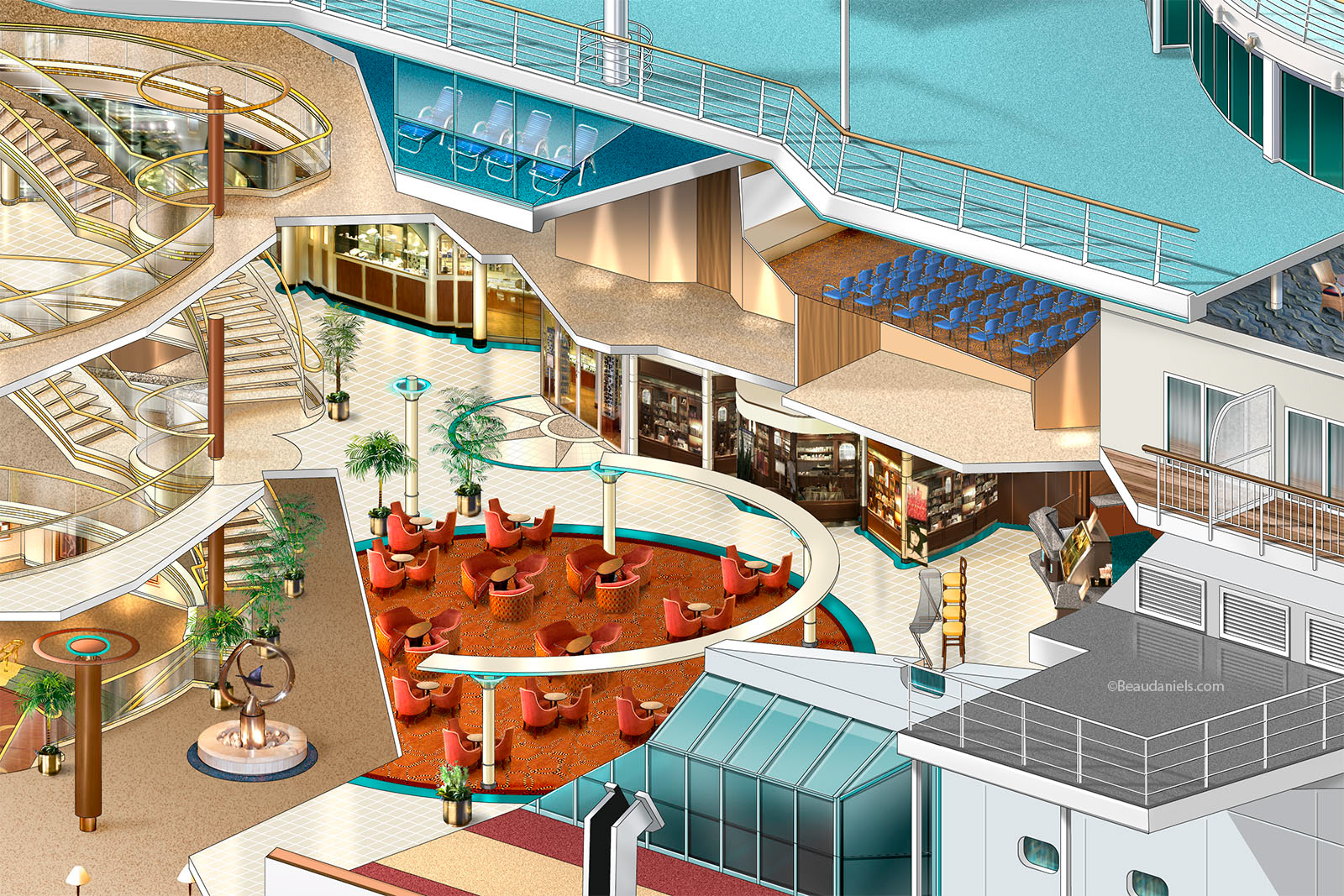

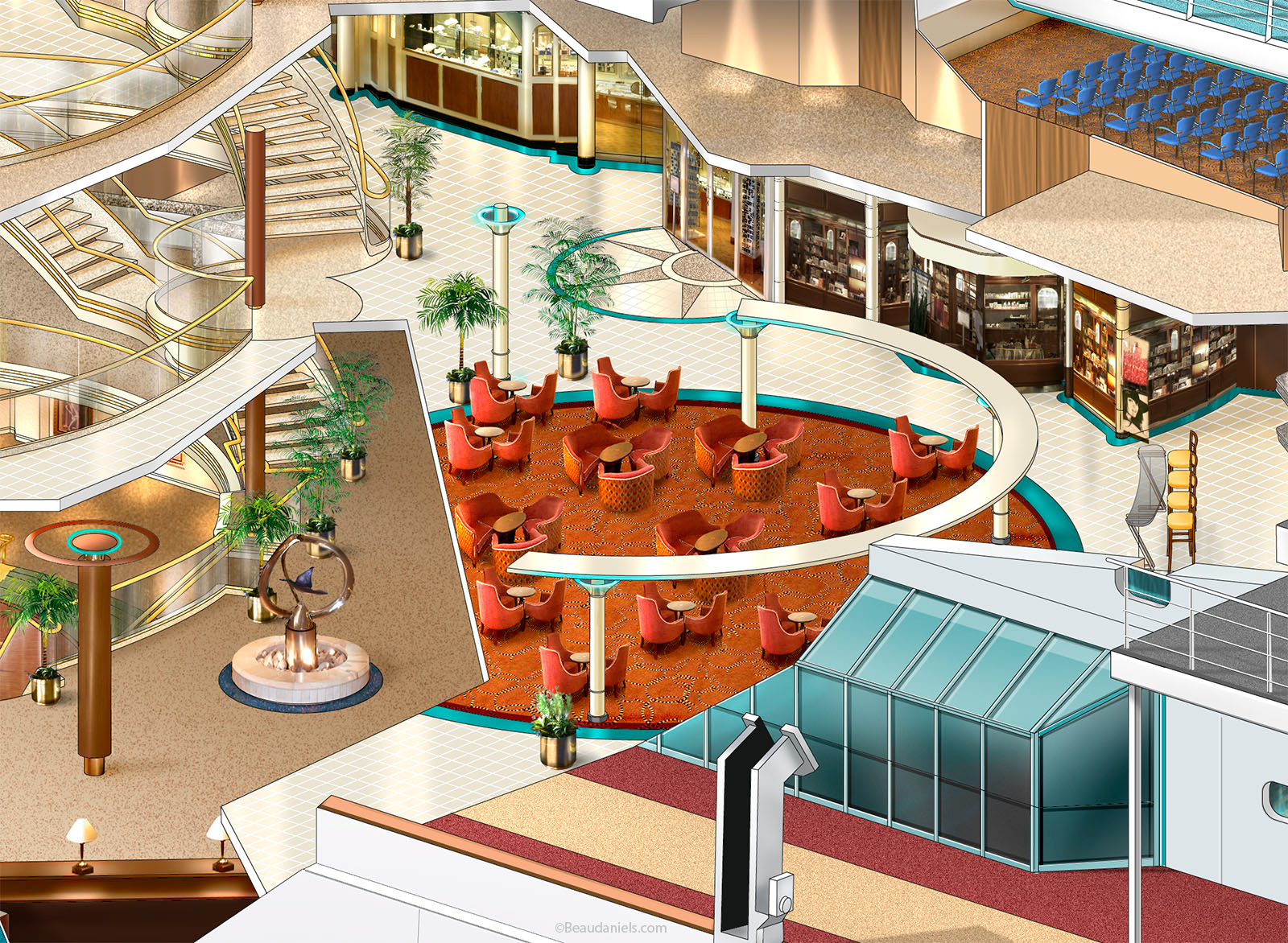

Monarch of the Seas, Seating area ouside the shops.
![](https://cdn.myportfolio.com/e48907d1-bf9c-4fbc-be11-1e00616919f7/6d45c4b6-44f4-4960-875f-0ac345cbcc1e_rw_1920.jpg?h=b7d56b7a7d1a32b283e16321e12148d3)
Monarch of the Seas, Shops, conference rooms etc.
![](https://cdn.myportfolio.com/e48907d1-bf9c-4fbc-be11-1e00616919f7/2a45ac1f-f2b1-4b95-bbee-f0c8daee5f31_rw_1920.jpg?h=d5c2882409e2bfb60d4bcaec7d0624ba)

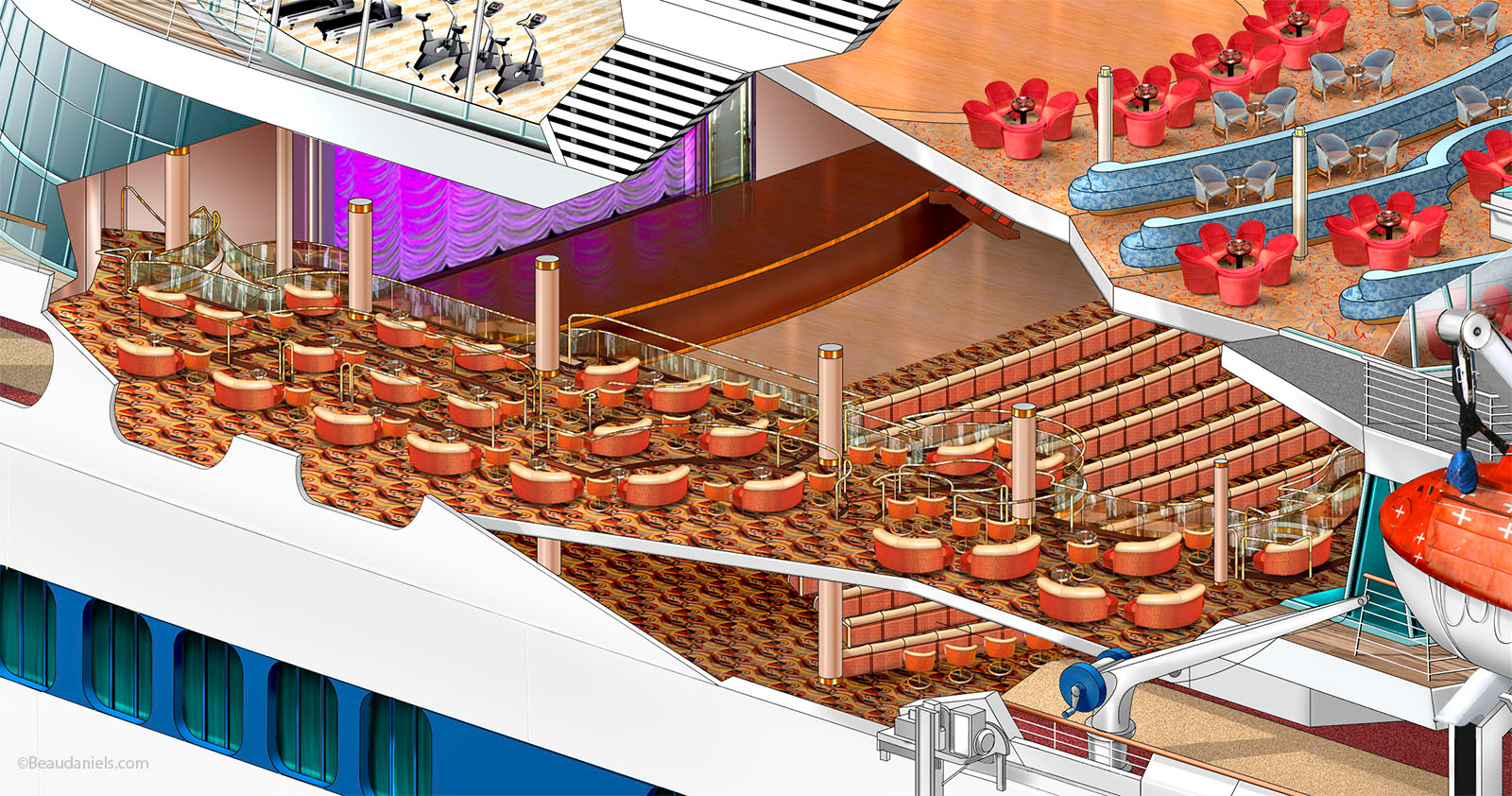

Monarch of the Seas, Shops, Theatre.
![](https://cdn.myportfolio.com/e48907d1-bf9c-4fbc-be11-1e00616919f7/56d50f7b-00af-4f43-822e-161e5b8bbad1_rw_1920.jpg?h=6a15df27a671018b189d890d92c9f3af)
Monarch of the Seas, Sushi restaurant.
